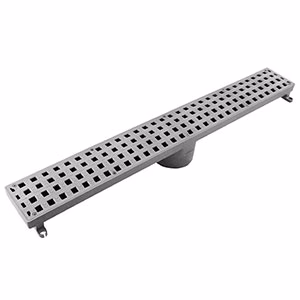

Tuf-Tite® 36″ Trench Drain
View
The Tuf-Tite® Trench Drain is a ready-to-install drainage system designed to efficiently manage water runoff in both residential and commercial settings. The unit comes with everything you need for immediate installation, including an ADA-compliant grate and removable solid end caps, making it convenient to push together several units when needed.
Product Details:
- Manufactured from injection-molded, UV-stabilized, and non-corrosive polypropylene for exceptional strength and lifetime durability
- Ideal for residential spaces including driveways, garage floors, and swimming pool decks
- Commercial-grade performance for warehouse factory floors and loading docks
- H-20 load rating (235 psi) ensures exceptional durability under heavy traffic conditions (Load Class C)
- Capable of withstanding a forklift with air-filled tires without compromising structural integrity
- Modular 36″ units push together and can be cut down to create drainage systems of any length
- Grate is specially molded to fit only the Tuf-Tite® Trench Drain and cannot be used with any other product
- Compatible with 4” SDR35, 3” SCH. 40, or 2” SCH-40 pipe sizes
- Versatile pipe connection options at the bottom or side
- Optional TR1-D4 male end drain available, which can be used to connect/drain from the side of the TR1 Trench Drain instead of the bottom (the TR1-D4 accepts 4″ SDR35-3034 pipe, 4” 2729 pipe, or 4″ corrugated pipe when used with and MF-4 pipe connector)
- 90° corners can be formed using TR1-90 corner units
- Available in a gray body with your choice of either a black or gray grate
Part Numbers:
- TR1 Trench Drain – Standard Black Grate
- TR1-GRAY Trench Drain – Gray Grate
- (both models 9 per carton, 60 per pallet)
